30w Mini LED High Bays

30w Fastlight Mini LED High Bay Pure Daylight White

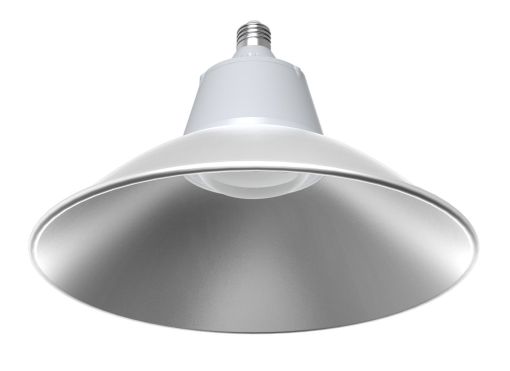

30w Mini LED High Bay Light Unit

• Latest Generation 2018 Version
• Modern Compact and Streamline in Design
• 2850 Lumens
• Integral Driver
• 2 Year Warranty
• Simply attach into an existing E27 Screw Thread Lampholder (Not Supplied)

This high quality 30 Watt LED (light emitting diode) Mini High Bay light unit has a similar light output to a traditional 70w metal halide or 70w high pressure sodium High Bay light but with a power consumption of only 30 watts and can provide an electrical usage cost saving of over 55%

Compact in design these latest generation high quality mini High Bay lights produce consistent and continuous lighting in many demanding applications both retail, industrial and commercial and due to having no glass components they are ideal for the food industry and suitable for a fit and forget 50000 + hour (15 year) service life

With a robust Aluminium integral fin heat sink designed to increase the cooling area whilst reducing weight this mini high bay light also features a high quality and high efficiency constant current LED driver ensuring light stability and greatly reduced power consumption

The high quality SMD LED light source provides low light decay with high colour rendering delivering stable flicker free light colour and low glare

This mini high bay light unit contains no mercury, lead, or hazardous substances and produces no UV, infrared or radiation
Product Features:

• The mini high bay housing shell is manufactured in Aluminium which is good at both low and high temperature with good dimensional stability, anti corrosive, resistant to rust and durable for an extended service life
• Quality LED driver with over current and over voltage protection, short circuit and over heating protection built in
• Integral thermal conductivity heat pipes for excellent heat dissipation
• Integral Aluminium heat sink adopting ultra thin aluminium corrugated profile technology, light weight, good heat dissipation and high reliability
• Quality pure aluminium optically designed diffused silver finish reflector for maximum reflector output and performance with a light reflection rate of 97%
• E27 Screwthread socket connector
• Lens made of opaque toughened polycarbonate, durable with exceptional light transmittance
• No lamp replacement during the 50000 + hour (15 year) floodlight service life
• Silent in start up and operation
• Ultra low running temperature
• Robust foam & cardboard packing for safe shipment
Technical Specification:

• Compliance: CE - RoHS - FCC - TUV
• Certified Ingress Protection: IP20 Internal use only
• IK Rating: IK07
• Reflector Beam Angle: 80 Degrees
• Operating Temperature: - 40°C / + 55°C
• Colour Temperature: Pure Daylight White (6000k)
• Input Voltage: 180-300v AC 47Hz-63Hz
• Input Current: 0.88A
• Output Voltage: 50V
• Rated Power: 30 watts
• Power Efficiency: >0.92
• Conversion Efficiency: 88%
• Emission Temperature: 65° against a traditional 70w High Bay of 700°
• Light Decay: 3% against a traditional 70w High Bay of 65%
• UGR (Unified Glare Rating): <12
• Lifespan: 50000 + hours against a traditional 70w High Bay of 8000 hours
• Energy Consumption: 55% + against a traditional 70w High Bay
• LED Type: High Quality SMD Chipsets (SMD3020)
• SMD LED Quantity: 60
• PCB: Aluminium 1070
• Lux Output: 1M=643LUX 2M=160LUX 3M=71LUX 4M=40LUX 5M=26LUX
• Colour Rendering Index: Ra80 against traditional 70w High Bay of Ra60
• Lumen Light Output: Pure White - 2850 Lumens
• Material: Cold Forged Aluminium
• Weight: 0.5 kgs
• Dimensions: 300mm Diameter x 200mm High
• Colour: Silver
• Warranty: 2 years

• Retail Stores • Hair Salons • Car Showrooms • Internal Sports Facilities • Supermarkets • Shopping Centres • Low Level Commercial & Industrial Applications • Reception Areas • Atriums • Food Preparation Areas • Public Buildings
In stock for next working day delivery

30w Fastlight Mini Led High Bay - In Stock

Price: 54.97 (Including VAT at 20%)

2 x 30w Fastlight Mini Led High Bays - In Stock

Price: 104.44 (Including VAT at 20%)

4 x 30w Fastlight Mini Led High Bays - In Stock

Price: 197.89 (Including VAT at 20%)
